LAMINATE PANEL DETAILS
Laminate panels are manufactured using an FSC® or PEFC certified plywood core which is bonded to high pressure laminate. To ensure a watertight finish, Laminate panels require trims (including Sureseal at the base of the panel) for all outer edges, and internal and external corners, available in a choice of White Gloss or Satin Silver finish.

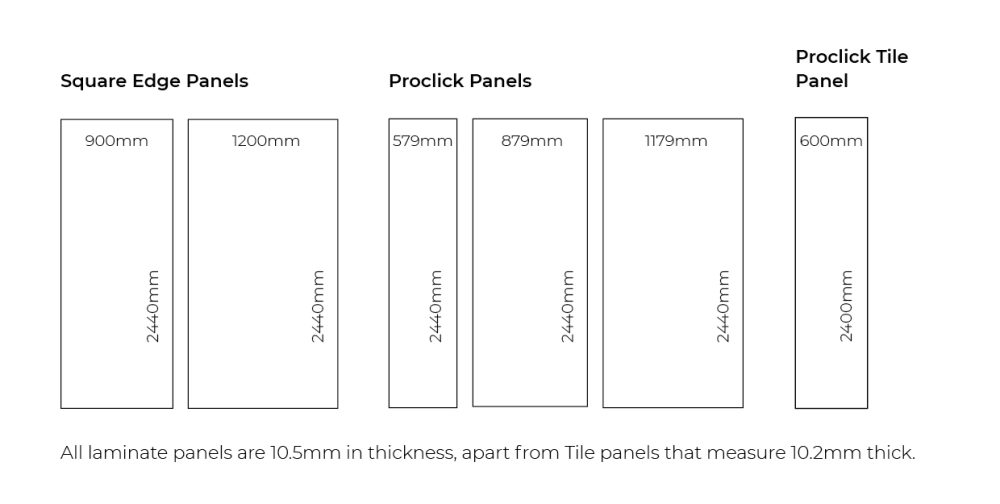

Choose from Square Edge or Proclick panels. Please note that Tile panels are only available as 600mm wide Proclick panel.

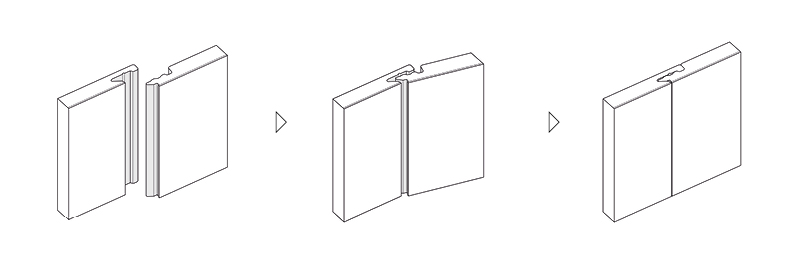

PROCLICK TECHNOLOGY
Proclick technology has been engineered to create a mechanical locking system that provides seamless, almost invisible joints. Proclick panels are available in a number of sizes for maximum flexibility. Installation is made easy through the click design which allows panels to be located quickly and easily into place, eliminating the use of joining trims. Due to a slight difference is thickness, Proclick Panels are not compatible with Proclick Tile Panels when being installed side by side.

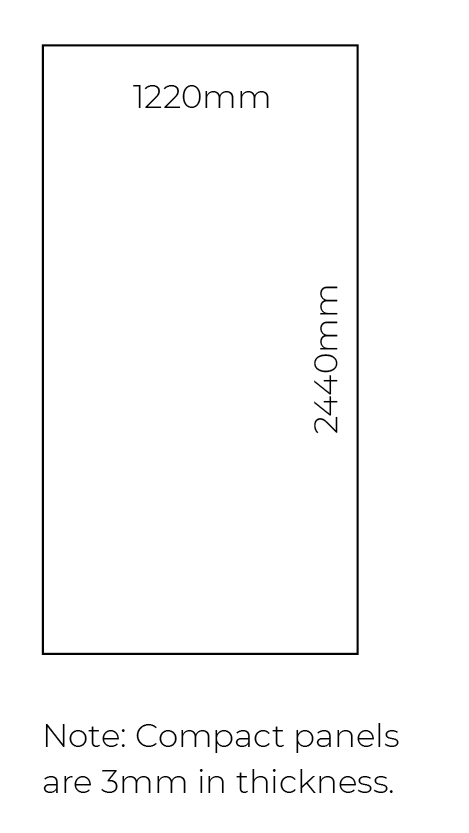

COMPACT PANEL DETAILS
These 3mm solid composite panels are manufactured with a square-edge profile and embossed to achieve a realistic tile-effect surface. Designed for use within a waterproof system, they provide a practical alternative to traditional tiles, offering straight forward handling and precise installation. The dense, non-porous material resists moisture and staining, ensuring a durable finish that remains easy to clean and maintain over time.
WATERPROOF SYSTEM
Our two-part system ensures a 100% watertight seal and comes in two colours to coordinate with any decor. Easy to install and maintain.
TRIMS
To ensure a 100% watertight finish, trims must be used on all outer edges and corners of all Laminate and Compact panels. Both Laminate (11mm) and Compact (4mm) have their own dedicated trim system available in two colour options; White Gloss and Satin Silver.

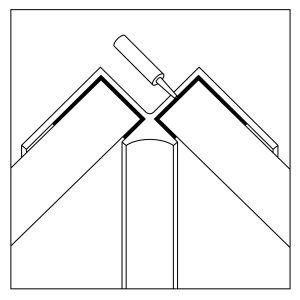

Internal corner
Used on all internal 90° corners
Joining trim
Used to mount panels side by side

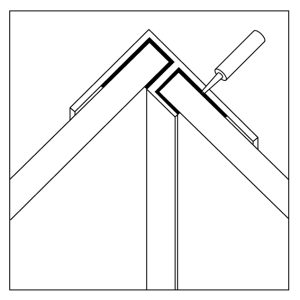

External corner
Used on all external 90° corners
End & Quadrant Trims
Finishing end trims for panels
*Quadrant trims available for laminate only.
Sureseal (only available for Laminate Panels)
At the base of the Showerwall panel, even greater sealing performance is achieved using Sureseal. Fit and forget using the only maintenance-free shower seal on the market with no future resealing required. This four point sealing system is quick and easy to install, leaving the entire base of the panel encapsulated in sealant without any unsightly lines. Sureseal measures 2450mm long.
Sureseal front capping is available in two colours:
White
Satin Silver

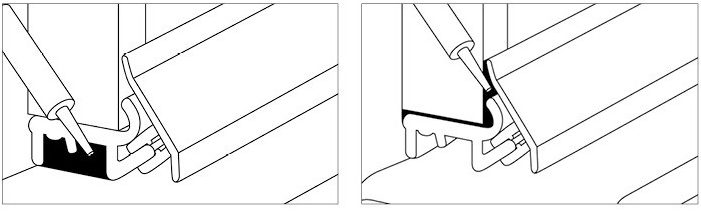

Seal one
Sealant between seal & tray
Seal two
Panel encapsulated in sealant

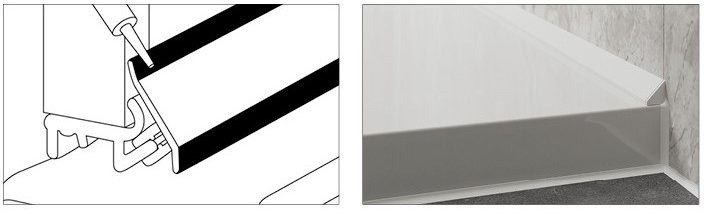

Seals three & four
Top & bottom seal
Sureseal in situ
A watertight professional finish

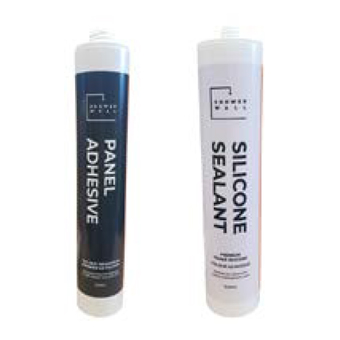

SEALANT & ADHESIVE
We recommend that Showerwall’s own brand of adhesive and sealants are used for the effective fitting of Laminate and Compact product. Our Showerwall guarantee only applies if the correct products are used when fitting Showerwall panels.
To determine the accessories required for your project, please refer to our Accessories Matrix and the example layouts shown below.
